GPR Scanning and Underground Utility Investigations in Houston
Houston jobsites rarely give contractors a clean underground picture.
Between old industrial properties, commercial remodels, parking lot expansions, tenant buildouts, utility reroutes, and years of undocumented repairs, the plans often tell only part of the story. The crew may have a trench route, boring path, or saw cut layout ready to go, but nobody wants to be the one who finds the unknown line with a bucket, drill head, or core bit.
That is where GPR scanning and underground utility investigations become part of the job planning process.
SiteTwin | Houston GPR Services
For contractors, engineers, facility managers, and property owners in Houston, the goal is not to guess what is underground. The goal is to reduce uncertainty before excavation, trenching, directional boring, coring, or concrete cutting begins.
Why Houston Jobsites Need Underground Utility Investigations
Houston has a wide mix of jobsite conditions.
One project may be a newer commercial pad site with clean access and recent drawings. The next may be an older industrial property with multiple utility corridors, abandoned services, undocumented private lines, and surface conditions that make locating difficult.
Common Houston site conditions include:
- Old utility records that do not match field conditions
- Private gas, water, electric, and communication lines
- Parking lot lighting circuits
- Irrigation systems
- Storm and sanitary conflicts
- Abandoned utilities left in place
- Dense utility corridors near buildings
- Slab penetrations in tenant improvement spaces
- Directional boring routes near existing infrastructure
- Utility crossings in drive lanes and loading areas
- On paper, the route may look clear.
In the field, the work area may have utility paint, old valve boxes, handholes, patched pavement, trench scars, and conflicting information from different plans.
That is when a utility investigation becomes more than a formality. It becomes a production tool.

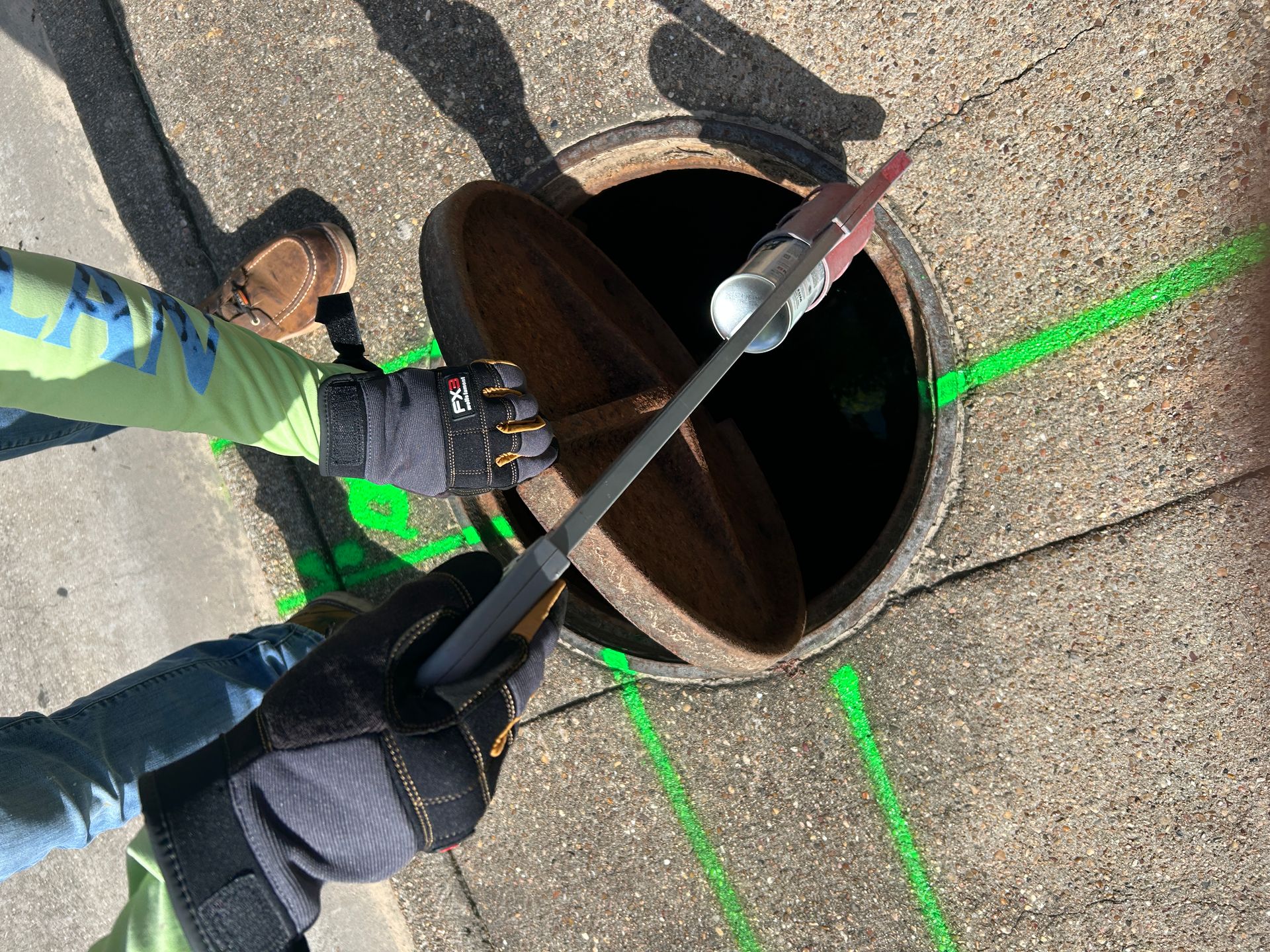

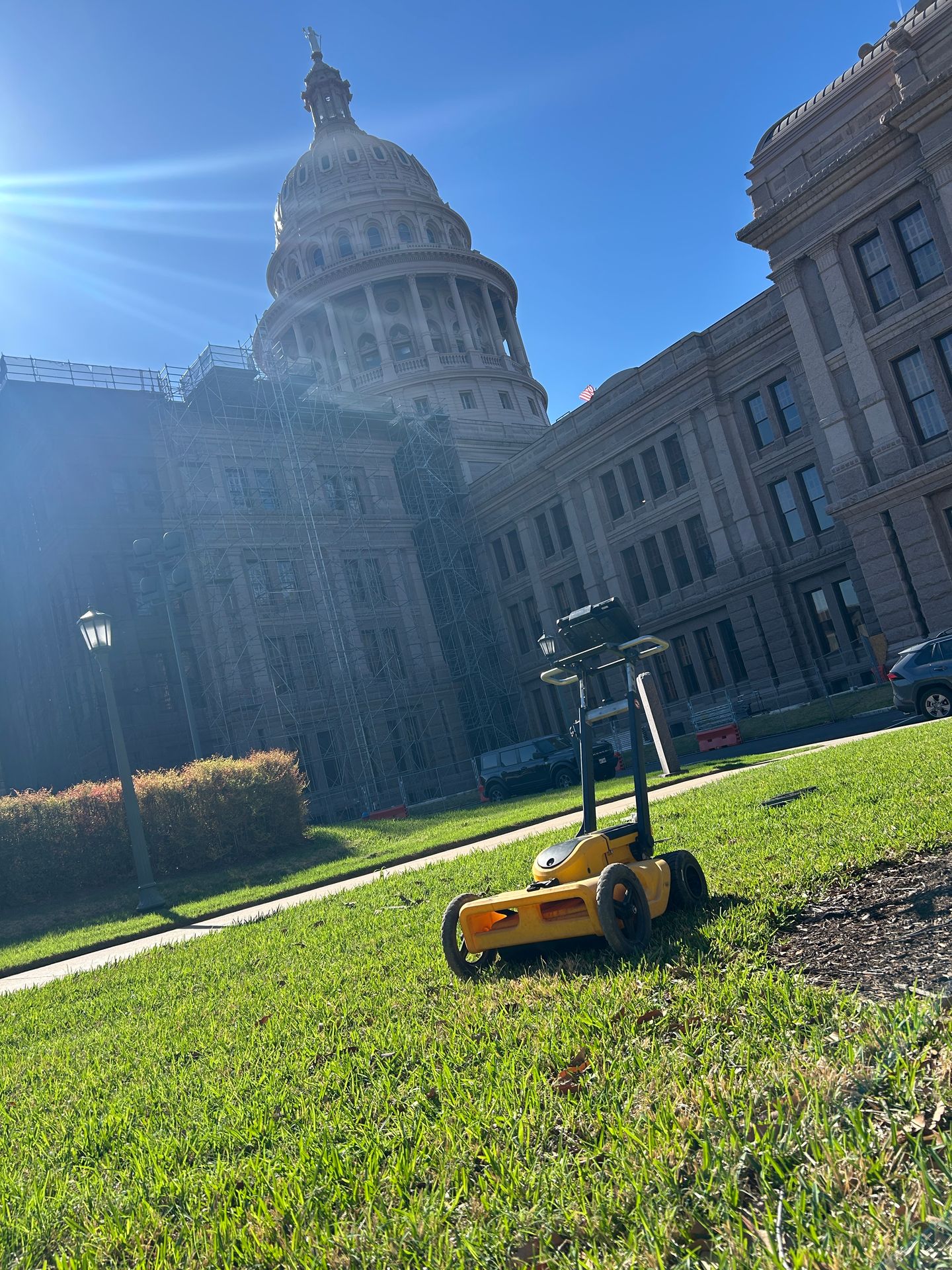

What GPR Scanning Does on a Utility Investigation
Ground penetrating radar uses radar signals to help identify subsurface features below the surface.
On utility investigation projects, GPR scanning can help identify buried targets, utility corridors, trench lines, voids, and other subsurface anomalies. It is often used alongside electromagnetic locating methods to build a more complete understanding of the work area.
GPR is especially useful when utilities are not easily traceable with electromagnetic equipment. That can happen when a utility is non-conductive, abandoned, inaccessible, poorly grounded, or not connected to a known access point.
But GPR has limits.
GPR does not see every utility in every condition. Clay soils, moisture, depth, surface conditions, reinforced concrete, debris, utility material, and nearby interference can all affect detection. GPR should be treated as an investigation tool, not a guarantee that every underground conflict will be found.
A good field investigation uses the right method for the condition.
That may include:
- Electromagnetic locating
- GPR scanning
- Visual site inspection
- Utility records review
- Surface feature documentation
- Marking suspected utility paths
- Identifying areas needing potholing
- Delivering site photos or utility maps
The goal is to reduce risk before crews disturb the ground.

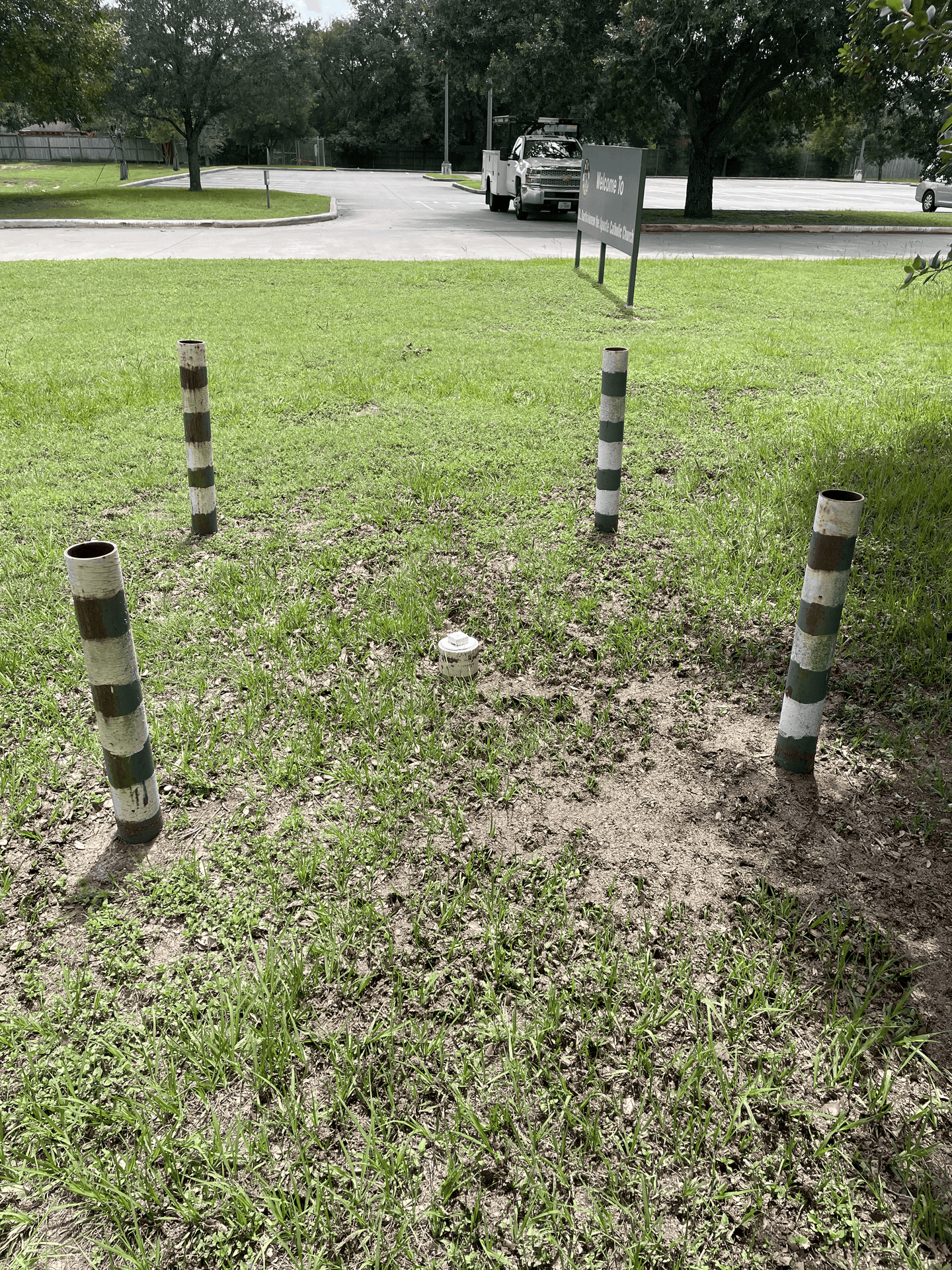

Private Utility Locating vs. 811 in Houston
811 is important and should still be contacted before excavation where required.
But 811 is not a full private utility investigation.
Public utility owners typically mark the infrastructure they own. On private property, many utilities may be outside their responsibility. That can include owner-installed infrastructure, secondary power feeds, site lighting, irrigation, private water lines, private gas lines, communication lines, and utilities installed during tenant improvements or site expansions.
SiteTwin | Private Locating Services
That matters in Houston because many commercial and industrial properties have been modified over time.
A warehouse may have added dock equipment. A retail center may have replaced lighting. A plant site may have rerouted utilities during an expansion. A medical office may have upgraded service feeds. A parking lot may have old utilities abandoned below new pavement.
811 may not mark those private systems.
That does not mean 811 failed. It means 811 and private utility locating serve different purposes.
Contractors should use 811 for public utility notification and private utility locating for site-specific utility investigation beyond public owner markings.
Where Underground Utility Investigations Help Most
Underground utility investigations are useful whenever the work could cross unknown infrastructure.
In Houston, that often includes commercial construction, industrial work, civil site work, facility maintenance, and property redevelopment.
Typical applications include:
- Trenching for electrical or plumbing work
- Directional boring under pavement or landscaped areas
- Excavation near buildings or service entrances
- Saw cutting asphalt or concrete
- Installing signs, bollards, light poles, or fencing
- Storm drain and sanitary work
- Utility tie-ins
- Parking lot reconstruction
- Tenant improvement projects
- Emergency repair work
- Pre-design utility mapping
A trench route across an open field is very different from a trench route through a Houston commercial property with multiple tenants, patched pavement, old plans, and active utilities on every side.
The more congestion onsite, the more important the investigation becomes.
Planning Excavation in Houston?
SiteTwin performs private utility locating, GPR scanning, and underground utility investigations for contractors and property owners across Houston and Texas.
How GPR and EM Locating Work Together
GPR scanning and electromagnetic locating are often used together because they answer different questions.
Electromagnetic locating is commonly used to trace conductive utilities. If the technician can connect to a line, induce a signal, or trace a utility from an accessible feature, EM locating can help identify direction and alignment.
GPR scanning helps investigate subsurface targets that may not be traceable with EM alone.
That combination is useful on Houston sites where utilities may be mixed, undocumented, abandoned, or congested.
For example, a technician may use EM locating to trace a known electric feed from a transformer, then use GPR to investigate nearby anomalies in the proposed trench path. If a target appears in the scan area but cannot be positively identified, that area can be marked as a conflict or recommended for potholing.
This is how field crews make better decisions.
The locate does not need to turn every unknown into a perfect record drawing. It needs to identify risk, mark conflicts, and help the contractor decide where excavation can proceed and where verification is needed.

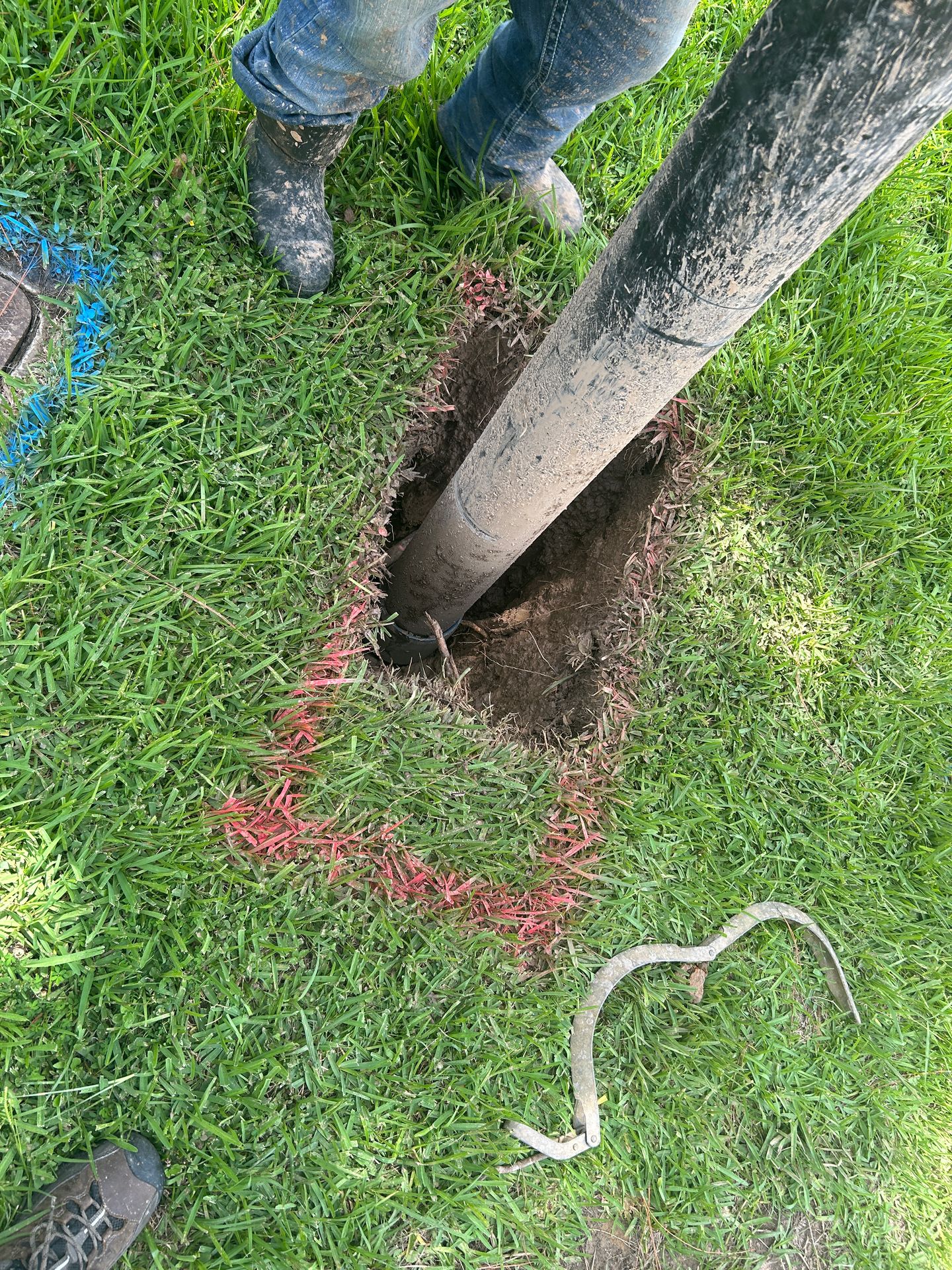

Why Potholing Still Matters After GPR Scanning
Utility locating and GPR scanning reduce uncertainty, but they do not replace physical verification.
When excavation risk is high, potholing or daylighting should be used to confirm utility depth, location, and type before mechanical excavation continues through a conflict area.
This is especially important for:
- Directional boring crossings
- Deep excavation
- Utility tie-ins
- Work near gas, power, fiber, or water mains
- Congested corridors
- Areas where markings conflict with plans
- Areas where GPR shows an anomaly that cannot be identified
- Work near critical facilities
A painted mark shows the suspected horizontal path. Potholing confirms what is actually there. For contractors, that difference matters. A line marked on the surface may still be shallower, deeper, offset, abandoned, or different than expected. Physical verification helps protect the crew, the schedule, and the surrounding infrastructure.

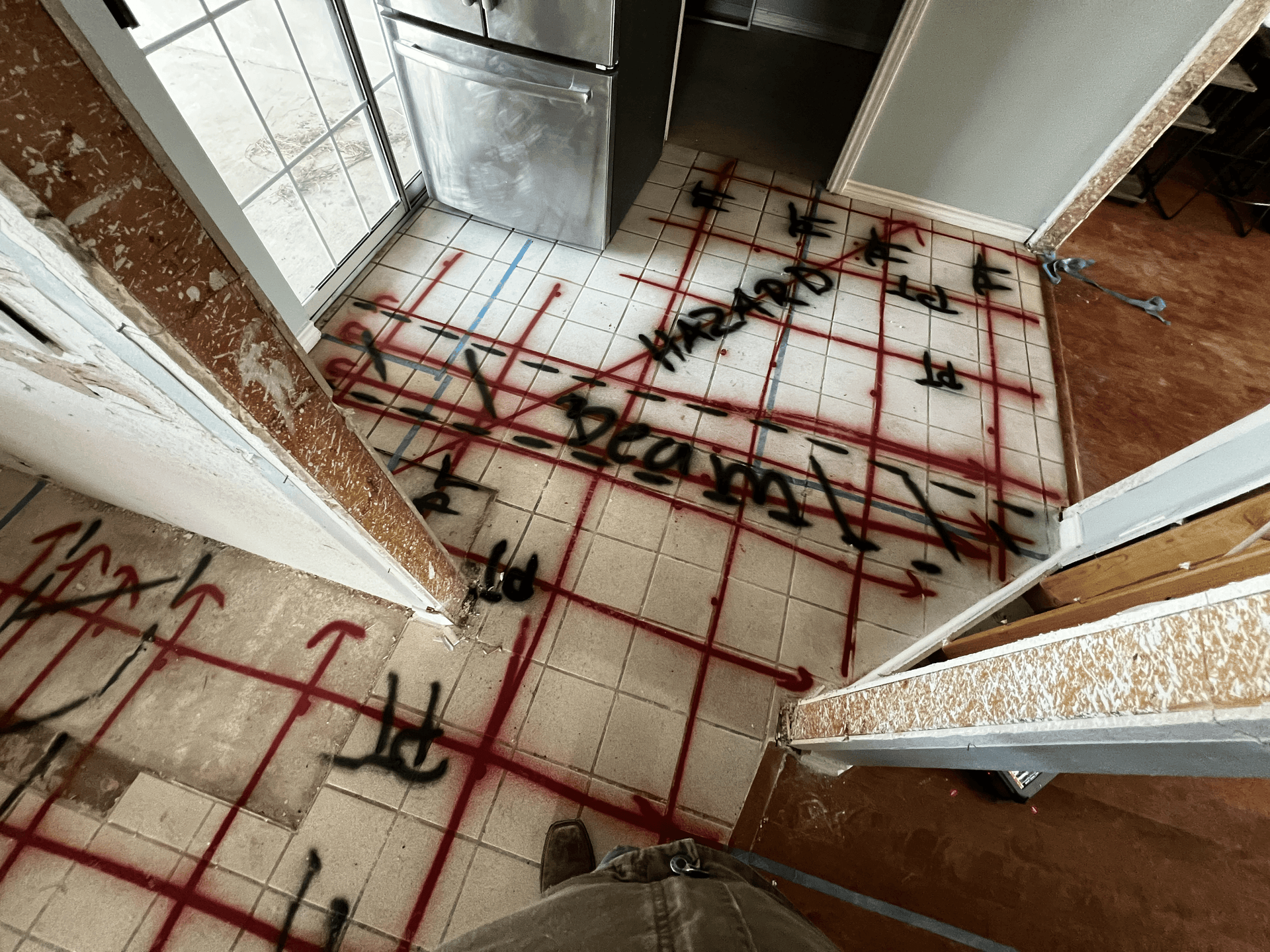

Concrete Scanning for Houston Slabs
Not every utility investigation is outdoors.
Houston contractors often need concrete scanning before coring, saw cutting, anchoring, or tenant improvement work inside existing buildings.
Concrete scanning can help identify embedded targets such as rebar, post-tension cables, conduits, and other objects within a slab.
SiteTwin | Concrete Scanning Services
This is common in:
- Office remodels
- Medical buildouts
- Retail tenant improvements
- Parking garages
- Industrial facilities
- Warehouse slab penetrations
- Mechanical, electrical, and plumbing upgrades
Concrete scanning also has limitations.
Reinforcement density, slab thickness, access, surface conditions, and target depth can affect results. Post-tension concrete requires extra caution because damaging a tendon can create major safety and repair issues.
For slab work, the scanning area should be accessible, clean, and large enough to evaluate the proposed penetration or cut zone. When the layout changes in the field, the scan area should be adjusted before work continues.
What a Houston Utility Investigation Includes
A utility investigation should be scoped around the actual work being performed.
A directional bore under a drive lane has different risk than a shallow irrigation repair. A hospital campus has different conditions than a small retail pad. A plant site has different documentation and access requirements than a commercial parking lot.
Depending on the project, SiteTwin may provide:
- Utility paint markings
- GPR scan areas
- EM utility tracing
- Site photos
- Field sketches
- PDF utility maps
- KMZ exports
- GIS-compatible utility mapping
- Notes on suspected abandoned utilities
- Conflict areas requiring potholing
- Documentation for project teams
These deliverables help superintendents, project managers, utility coordinators, engineers, and subcontractors work from the same field information.
They are also useful when a project has multiple crews mobilizing at different times.
A locate performed in the morning may guide excavation later that day. A PDF map or KMZ file may help the project manager communicate findings to an engineer, owner, or subcontractor that was not onsite during the investigation.
Scheduling Expectations for Houston Projects
Scheduling depends on project size, urgency, location, and crew availability.
Many smaller investigations can be completed in a single site visit. Larger sites, industrial facilities, congested utility corridors, or multi-area scopes may require more time.
For Houston contractors, it helps to provide:
- Project address
- Scope of work
- Proposed excavation, bore, or cut area
- Site plans or markups
- Photos of the work area
- Known utility records
- Access instructions
- Required timing
- Site contact information
Same-day or next-day mobilization may be available in many cases, especially for smaller or urgent verification work.
For larger investigations, better planning usually produces better results. If utility maps, KMZ exports, or GIS-compatible deliverables are needed, the scope should be discussed before the crew arrives onsite.
What Contractors Should Expect in the Field
A technician will review the work area, look for surface features, confirm the scope, and begin the investigation using the appropriate equipment.
The crew may mark utilities and suspected targets with paint, flags, or other field markings, depending on site requirements.
During the investigation, the technician may identify:
- Known utility paths
- Suspected unknown lines
- Congested utility corridors
- Areas with poor signal quality
- GPR anomalies
- Utilities that need potholing verification
- Access issues that limit the investigation
- Conflicts with the proposed excavation route
This is field work. Conditions matter.
A clean asphalt parking lot with good access is different from a wet, congested, reinforced, or debris-filled area. A utility with accessible connection points is different from a non-conductive private line with no tracer wire. A recently built site is different from a property with 40 years of undocumented changes.
Good utility investigations account for those realities instead of pretending every site scans the same.
When to Call SiteTwin
Call SiteTwin before the job reaches the point where the crew is standing around waiting for answers.
The best time to schedule GPR scanning or a utility investigation is before excavation, boring, saw cutting, coring, or layout decisions are locked in.
That gives the project team time to adjust the route, pothole conflict areas, update the field plan, or coordinate around known risks.
For Houston contractors and property owners, SiteTwin can support:
- Private utility locating
- GPR scanning
- Concrete scanning
- Underground utility investigations
- Utility mapping
- Excavation support
- Directional boring support
- Conflict identification before trenching
The goal is simple: give the crew better information before work starts.
Houston Utility Locating FAQ
Does 811 mark private utilities in Houston?
811 should still be contacted before excavation where required, but it does not typically provide a complete private utility investigation. Public utility owners usually mark infrastructure they own. Private utilities such as site lighting, irrigation, private electric, private gas, communication lines, and owner-installed systems may require private utility locating.
Can GPR scanning find all underground utilities?
No. GPR scanning cannot find every underground utility in every condition. Soil type, moisture, depth, surface material, utility material, and site congestion can affect detection. GPR is best used as part of a broader utility investigation with EM locating, field review, and potholing where needed.
When should a contractor use underground utility investigations?
Underground utility investigations are useful before trenching, directional boring, excavation, utility tie-ins, saw cutting, coring, or work on sites with incomplete plans. They are especially important on commercial, industrial, and older Houston properties with private or undocumented utilities.
Is potholing still needed after GPR scanning?
Yes. When a utility conflict is present or excavation risk is high, potholing or daylighting should be used to physically verify the utility depth, location, and type before mechanical excavation continues.
Can SiteTwin provide maps after a utility investigation?
Depending on the scope, SiteTwin may provide PDF utility maps, KMZ exports, site photos, field sketches, GIS-compatible utility mapping, and notes on conflict areas or recommended potholing locations.
How fast can GPR scanning be scheduled in Houston?
Scheduling depends on crew availability, site access, and project scope. Same-day or next-day mobilization may be available in many cases for urgent Houston utility investigations. Larger sites or mapping deliverables may require additional coordination.
