What Is Private Utility Locating? A Contractor’s Guide Before Excavation
Private utility locating is the process of identifying underground utilities that may not be marked through the public 811 system. That matters when a contractor is about to trench, bore, drill, excavate, saw cut, install signs, repair utilities, or perform site work on private property.
The problem is simple: many crews assume an 811 ticket means everything underground will be marked. In the field, that is not always how it works.
811 is important and should still be contacted before excavation where required. But 811 typically coordinates markings for public utility owners. It may not include private utilities installed, owned, or maintained by a property owner, facility, tenant, developer, or contractor. That gap can leave active utilities unmarked directly in the work area.
SiteTwin | Private Utility Locating Services
What Counts as a Private Utility?
A private utility is generally any underground utility that is not owned or maintained by a public utility provider. Private utilities are common on commercial properties, industrial sites, schools, hospitals, apartment complexes, shopping centers, warehouses, campuses, and private developments.
Examples include:
- Parking lot lighting circuits
- Irrigation lines
- Private gas lines
- Private water lines
- Fire lines
- Secondary electric feeds
- Communication lines
- Fiber line
- Security or access control conduits
- Storm drain laterals
- Sanitary sewer laterals
- Electric lines between buildings
- Utilities installed during tenant improvements
- Abandoned utilities left in place
These utilities may run across parking lots, landscaped areas, sidewalks, loading zones, courtyards, drive lanes, and building entrances. They may not be shown on current drawings. They may not be marked by 811. They may still be active. That is why private utility locating is used before excavation begins.
Private Utility Locating vs. 811
811 and private utility locating are not the same service. 811 is a public utility notification system. When a ticket is submitted, participating utility owners are notified so they can mark the facilities they own near the proposed excavation area.
Private utility locating is a site-specific investigation performed to identify utilities that may not be covered by public utility owner markings. A contractor should not treat one as a replacement for the other.
811 should still be contacted where required before excavation. Private utility locating should be considered when the project is on private property, when drawings are incomplete, when 811 marks do not cover the full work area, or when owner-installed utilities may be present onsite.
This is especially important before:
- Trenching
- Directional boring
- Excavation
- Utility tie-ins
- Fence installation
- Sign installation
- Bollard installation
- Light pole installation
- Drainage work
- Parking lot reconstruction
- Building additions
- Emergency repairs
- 811 helps notify public utility owners.
Private utility locating helps investigate what may still be onsite after public markings are complete.
Why Contractors Use Private Utility Locating
Contractors use private utility locating because underground conditions are often messier than the plans show. A site may have changed hands several times. A parking lot may have been expanded. A tenant may have added power or communication lines. A building may have been renovated. A utility may have been abandoned but never removed. Those changes do not always make it into the record drawings.
Private utility locating helps reduce excavation risk before crews disturb the ground. It can help identify:
- Unknown utility paths
- Unmarked private lines
- Conflicts with trench routes
- Possible abandoned utilities
- Utility congestion
- Areas needing potholing
- Safer routing options
- Field conditions that do not match the plans
A good locate does not just put paint on the ground. It gives the superintendent, foreman, project manager, operator, and excavation crew better information before production starts.

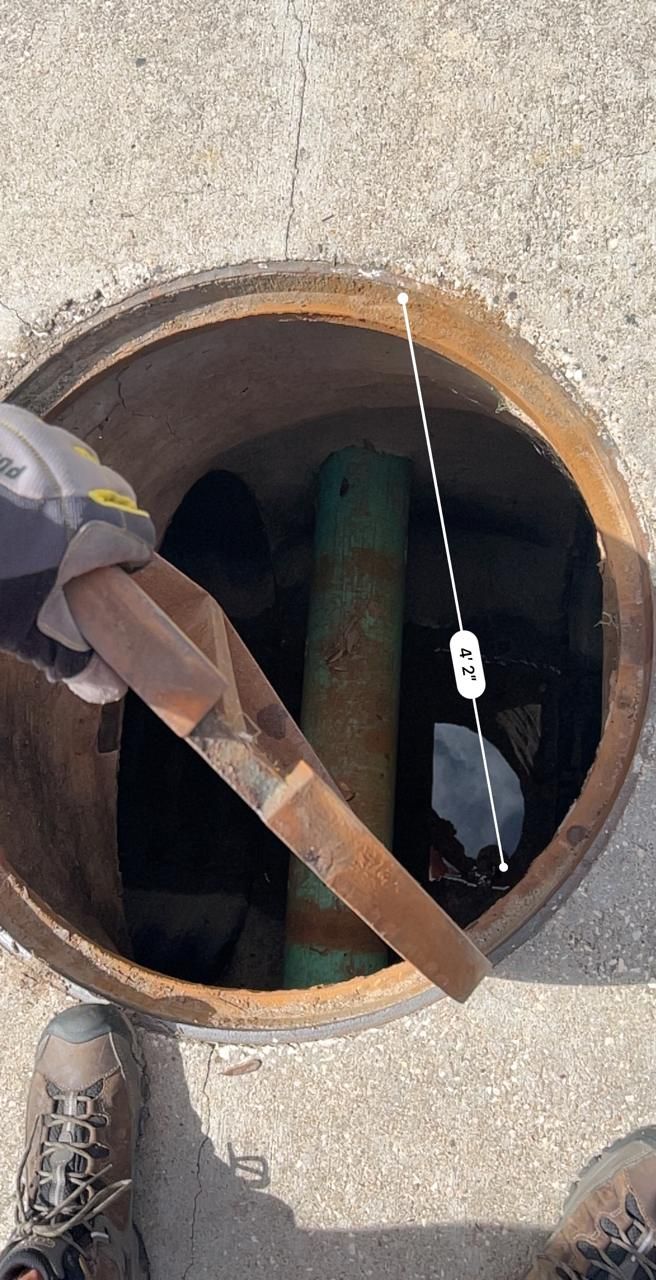

How Private Utility Locating Works
Private utility locating usually starts with a review of the work area and available information. That may include site plans, as-builts, utility drawings, owner records, photos, project markups, and the proposed excavation route. Then the technician walks the site and looks for visible utility indicators.

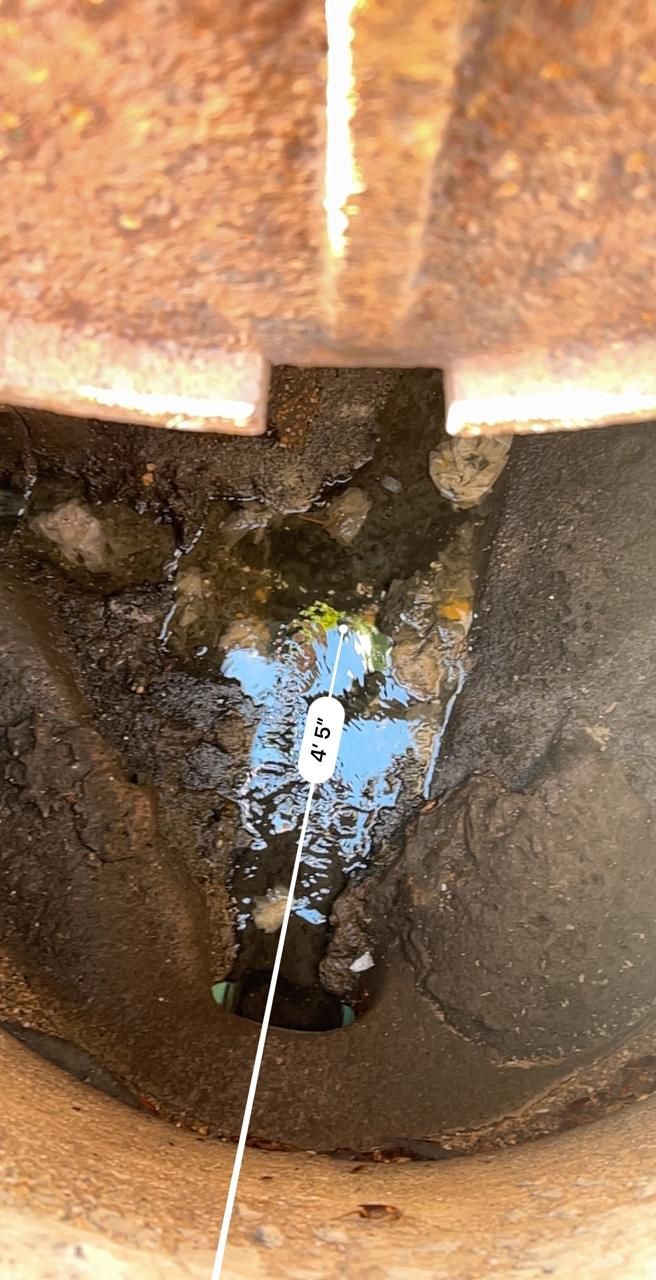

Common field indicators include:
- Manholes
- Valve boxes
- Cleanouts
- Transformers
- Meter banks
- Handholes
- Pull boxes
- Light poles
- Irrigation controls
- Trench scars
- Pavement patches
- Building penetrations
- Utility warning signs
These surface features help guide the investigation. From there, the technician may use electromagnetic locating equipment, ground penetrating radar, or both depending on the site conditions and the utilities being investigated.
SiteTwin | GPR Scanning Services
Electromagnetic locating is commonly used for conductive utilities or utilities with tracer wire. GPR scanning can help investigate buried utilities that may not be traceable with electromagnetic methods alone.
GPR has limitations. Soil type, moisture, clay content, depth, surface conditions, utility material, debris, and nearby interference can all affect what can be detected. GPR should not be treated as a guarantee that every underground utility will be found. That is why private utility locating is a risk-reduction process, not a promise that the site is completely clear.
Planning Excavation or Concrete Cutting?
SiteTwin performs private utility locating, GPR scanning, and concrete investigations for contractors and property owners across Texas.
SiteTwin | Request A Locate

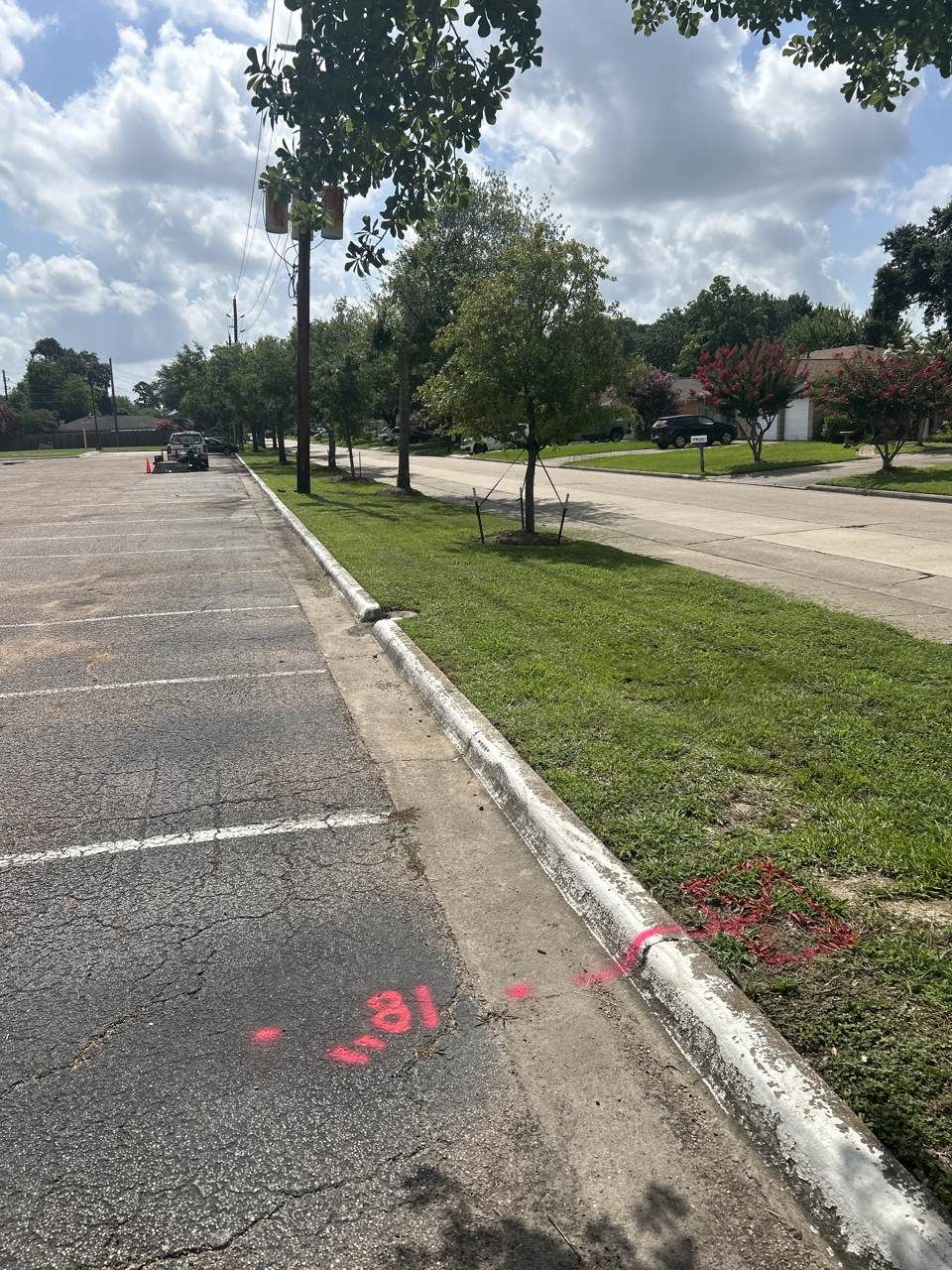

What Gets Marked During a Private Locate?
During a private locate, utilities and suspected utility paths are typically marked onsite using paint, flags, stakes, labels, or field notes. The exact markings depend on site requirements, surface conditions, and project scope.
A technician may mark:
- Known utility paths
- Suspected utility paths
- Conflict areas
- Unknown targets
- Abandoned utility routes
- Utility corridors
- Areas where signal quality is limited
- Areas requiring potholing verification
The crew should understand the difference between a confirmed utility, a suspected utility, and an area with limited confidence.
That communication matters.
Paint markings are useful, but they are not a substitute for safe digging practices. When excavation risk is high, potholing or daylighting should be used to physically verify utility depth, location, and type before mechanical excavation continues through a conflict area.

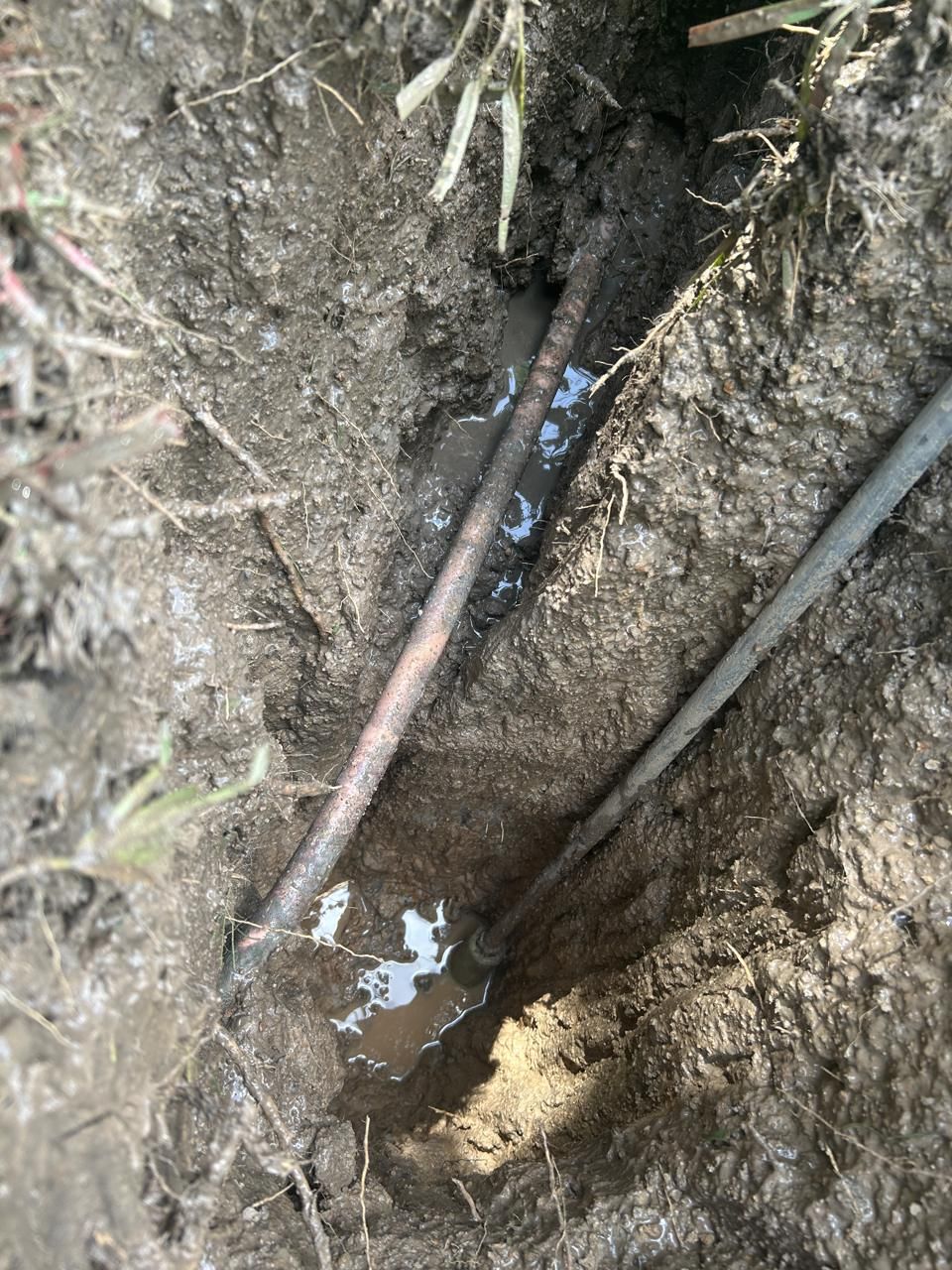

Utility Locating Before Directional Boring
Directional boring carries a different level of risk because the bore head moves underground where the operator cannot visually confirm every crossing. Before boring, private utility locating can help identify crossings, congested corridors, and areas where potholing is needed.
This is especially important at:
- Utility crossings
- Road or driveway crossings
- Building service entrances
- Transformer areas
- Communication corridors
- Gas or water conflict points
- Aeas with unclear utility records
The locate should identify likely conflicts before the bore begins. Then potholing should be used to verify critical crossings so the boring crew knows where utilities actually are, not just where they are assumed to be. For more on this, see our directional drill locator guide.
Private Utility Locating for Commercial Properties
Commercial properties are one of the most common places where private utilities are missed. A shopping center, warehouse, office building, restaurant pad, medical facility, or industrial site may have utilities added over many years.
Common examples include:
- Parking lot lights added after original construction
- Irrigation installed by a landscape contractor
- Communication lines added for tenants
- Private electric feeds between buildings
- Grease trap or sanitary laterals
- Fire protection lines
- Security gate power
- Old utilities abandoned below pavement
- The property owner may not have complete records.
The property owner may not have complete records. The contractor may only have civil drawings for the current scope. 811 may only mark public utility owner infrastructure. That leaves a gap where private utility locating becomes necessary.

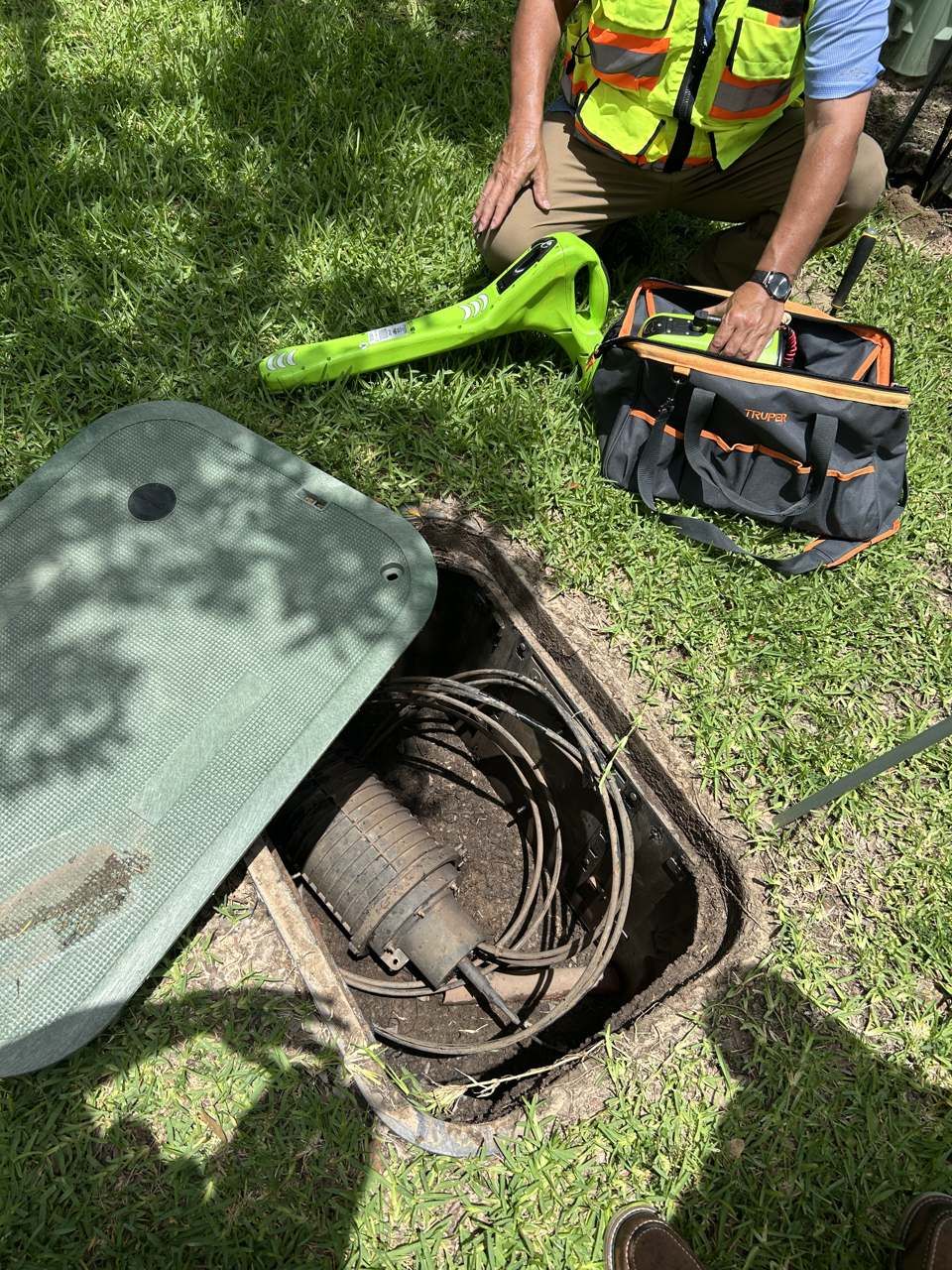

Private Utility Locating for Texas Jobsites
Texas jobsites often move fast. Crews are scheduled tightly, equipment is expensive to leave idle, and excavation delays can affect several trades at once. Private utility locating is commonly used across major Texas markets where commercial, industrial, and civil projects involve private utilities and congested underground conditions.
SiteTwin provides private utility locating across the state, including:
- SiteTwin | Austin Locating Services
- SiteTwin | Dallas Locating Services
- SiteTwin | Houston Locating Services
- SiteTwin | Fort Worth Locating Services
- SiteTwin | San Antonio Locating Services
In cities like Houston, Dallas, Austin, San Antonio, and Fort Worth, many properties have been expanded, repaved, remodeled, or repaired over time. That creates underground conditions that may not match the original plans. A private locate helps the project team slow down just enough to avoid a much larger shutdown later.
Concrete Scanning and Private Utility Work
ome private utility risks are inside or beneath concrete. Before coring, saw cutting, trenching through a slab, or installing anchors, concrete scanning may be needed to identify embedded objects.
SiteTwin | Concrete Scanning Services
Concrete scanning can help locate:
- Rebar
- Post-tension cables
- Conduits
- Embedded utilities
- Unknown targets
- Reinforcement patterns
This is common during tenant improvements, mechanical upgrades, plumbing work, electrical routing, equipment installs, and slab modifications. It can also help locate voids under concrete before coring or cutting.
Post-tension concrete requires extra caution. Damaging a tendon can create serious safety, structural, and repair issues. Concrete scanning also has limitations. Slab thickness, reinforcement density, access, surface conditions, and target depth can affect results. The scan area should be clearly defined before the technician arrives
Utility Mapping and Deliverables From a Locate
Some projects only need paint markings onsite. Others need documentation for the project manager, owner, engineer, or subcontractors. Depending on the scope, private utility locating deliverables may include:
- Field paint markings
- Utility sketches
- Site photos
- PDF utility maps
- KMZ exports
- GIS-compatible utility mapping
- Notes on utility conflicts
- Potholing recommendations
- Markups showing investigated areas
These deliverables help keep everyone working from the same information. They are especially useful when excavation will happen after the locating crew leaves, when several subcontractors are involved, or when the owner needs a record of what was investigated.
The Limits of Private Utility Locating
Private utility locating reduces risk, but it does not remove all risk. It does not guarantee that every underground utility will be found. It does not replace 811. It does not replace potholing when physical verification is needed. It does not make unsafe excavation practices acceptable.
Underground utility investigations depend on site conditions, utility materials, access, records, depth, congestion, and available locating methods. The right way to use private utility locating is to combine it with:
- 811 notification where required
- Site records review
- Field markings
- Safe excavation practices
- Potholing verification
- Clear communication with the crew
- Documentation when needed
That combination gives contractors a better chance to avoid preventable utility strikes and production delays.
When Should You Schedule Private Utility Locating?
Private utility locating should be scheduled before excavation decisions are locked in. It is especially useful when the project involves private property, missing records, old infrastructure, tight schedules, or high-risk work.
Schedule private utility locating before:
- Excavation
- Trenching
- Directional boring
- Drilling
- Fence installation
- Sign installation
- Bollard installation
- Light pole installation
- Utility repairs
- Site drainage work
- Parking lot reconstruction
- Building additions
- Work near existing services
- Emergency digging
It is also useful when 811 markings are delayed, incomplete, or do not match what the crew sees onsite. Same-day or next-day mobilization may be available in many cases depending on crew availability, location, site access, and project scope. Larger or more complex investigations may require more planning, especially if mapping deliverables are needed.
Private Utility Locating FAQ
What is private utility locating?
Private utility locating is a field investigation used to identify underground utilities that may not be marked through the public 811 process. It is commonly used on private property before excavation, trenching, boring, drilling, or site work.
Does 811 locate private utilities?
Not usually. 811 typically notifies public utility owners so they can mark infrastructure they own. Private utilities such as site lighting, irrigation, private electric, private gas, communication lines, and owner-installed utilities may require private utility locating.
When should I use private utility locating?
Use private utility locating before excavation, trenching, directional boring, utility repairs, parking lot work, sign installation, fence installation, or any project where private or undocumented utilities may be present.
Can GPR find all private utilities?
No. GPR cannot find every utility in every condition. Soil type, moisture, depth, surface conditions, utility material, and site congestion can affect detection. GPR is useful, but it should be part of a broader utility investigation.
Is potholing still needed after private utility locating?
Yes. When excavation risk is high or a utility conflict is present, potholing or daylighting should be used to physically verify utility depth, location, and type before mechanical excavation continues.
What information should I provide before scheduling?
Provide the project address, scope of work, proposed excavation or bore route, site contact, access instructions, timing needs, photos, plans, and any known utility records.
Can SiteTwin provide utility maps?
Depending on the scope, SiteTwin may provide PDF utility maps, KMZ exports, GIS-compatible utility mapping, site photos, field sketches, and notes on conflict areas or potholing recommendations.
Private utility locating helps contractors avoid digging blind.
Before trenching, boring, drilling, cutting, or excavating, get the work area investigated, marked, and documented so the crew can make better field decisions.
